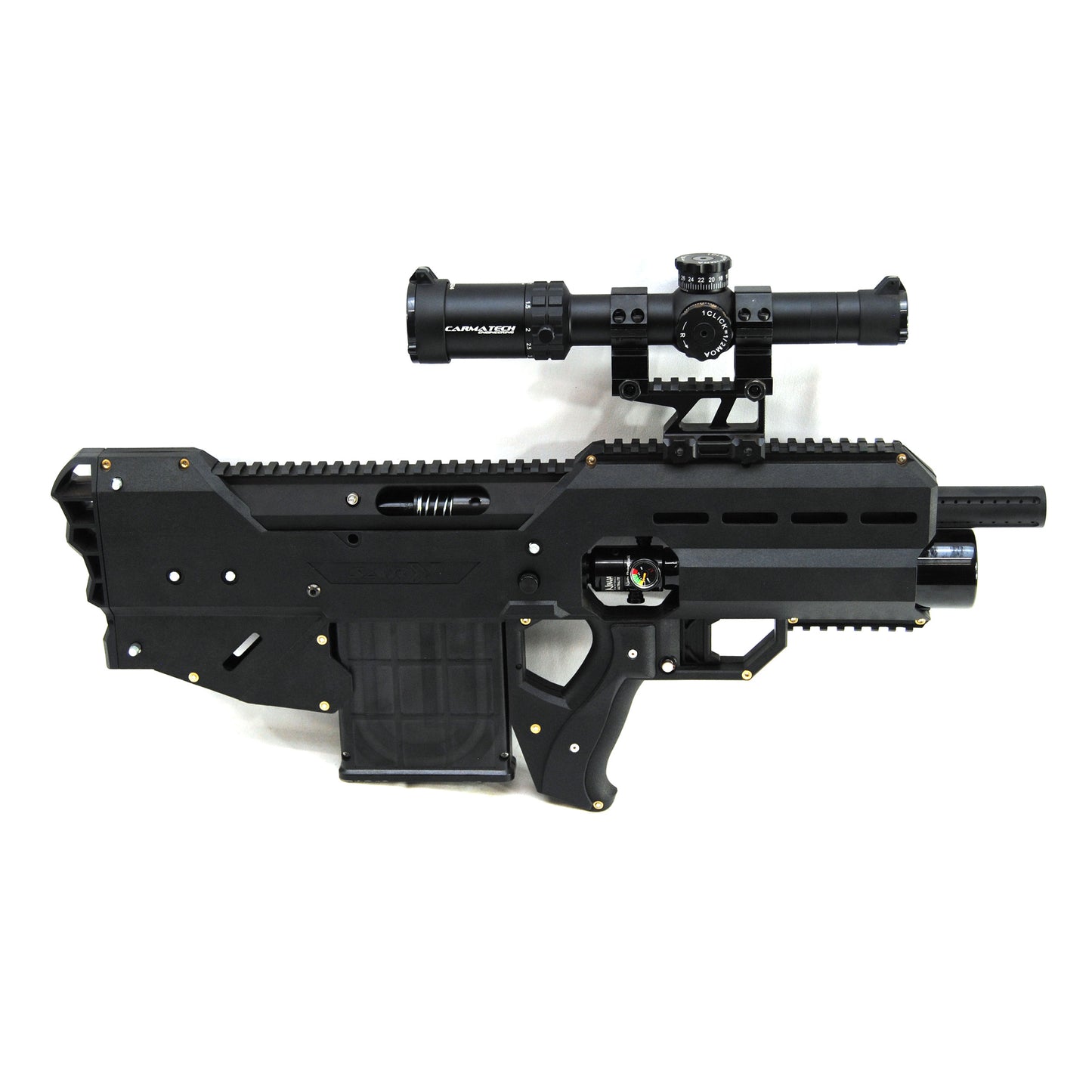

Carmatech Engineering SARX Bullpup Modular Paintball Rifle - Supremacy AOS Kit

It has been Carmatechs desire to bring a bullpup to the paintball market since company inception; however, deep thought had to be given about mechanical placement of critical systems.  Whether a bullpup or traditional rifle layout, a pneumatic rifles biggest design constraint is location of the air system; however, after evaluating locations above, below, and beside the barrel, Carmatech opted to locate below.  In addition the cross-platform upper receiver (shared with the original SAR-12/ SAR-12C) has been mounted as far back into the shooters shoulder as possible.  By doing so, it was able to reduce the overall length of the rifle to 22 inches tip to butt (12/15 Nemesis barrel), and significantly reduce the cantilever weight found on the shooters off hand.

When Carmatech originally designed the SAR-12 back in 2009, it was designed with a sliding trigger rather than a pivoting trigger found on most rifles.  The reason for the sliding trigger was twofold; first being that they needed the sliding style to actuate the proprietary bolt action assembly sear; and two, they wanted to future proof the design for the mechanics of a bullpup.  The bullpup trigger is pocketed in a channel that sits parallel to the magwell.  The airline is also similarly placed on the opposite side of the magwell.

The air system was designed with an integrated sliding on/off valve.  This allows the user to keep the tank installed semi permanently.  In addition, the access windows allow for the user to inspect tank gauge pressures, along with filling the tank while installed on the marker.

Rifle Design Specifics

• CHASSIS: SARX, COMPOSITE NYLON/ GLASS FIBER BLEND
• RECEIVER: SAR ALUMINUM UPPER RECEIVER/ REGULATOR ASSEMBLY
• VALVE: G2X INLINE SPOOL/ PNEUMATIC ACTUATED/ SPRING RETURN CLOSED BOLT SEMI AUTO
• REGULATOR: VARIABLE OUTPUT, QUICK REMOVABLE INTERNALS
• OPERATING PRESSURE: 280 PSI
• BARREL: PROPRIETARY CARMATECH NEMESIS 10/13 INCH BARREL SYSTEM
• AIR SYSTEM: NINJA 13/3000
• MAGAZINES: QTY TWO (2) 18 ROUND SARX MAGS
• WARRANTY: FACTORY DIRECT LIMITED LIFETIME
• MADE IN THE USA

Supremacy AOS Scope Features:

• First Focal Plane (FFP) reticle
• Reticle scales (zooms) as a function of magnification
• Range estimation performance at all zoom levels
• POA (Points Of Aim) constant at all zoom levels
• 1-4x variable zoom
• Large Field of View (FOV)
• Carmatech Engineering designed, Ballistically Tuned, etched glass
• Drop Compensating Reticle (DCR)
• Range Estimation (RE) 10 yard intervals, 20-130 yards
• Designed for 270-290 fps marker velocity
• Works with or without- tiltable scope bases
• Red reticle illumination
• 3.8- 4.2 inch eye relief (Designed for paintball masks)
• INCLUDES HD 30mm Nato/ Milspec ring set ($40 value)
• Lens Cloth

This kit includes an optics riser and set of high profile scope rings (shown installed) optimized for use while wearing a paintball mask.
